CRP-RH21-06-W
Describe
INDUSTRIAL ROBOTWELDING APPLICATION
FUNCTIONAL FEATURES
  • Use high-speed motor, and do software optimization, the overall beat is 20% faster thanthe previous generation,

  • Lighter weight,smaller for earm size, better accessibility;

  • High protection :1,2 shafts are equipped with dustproof cover, and fully surrounded welding gun is used at the same time;

  • J4,J6 axis hollow structure, can use hollow welding gun;

  • Built-in user line, gas pipe, welding cable,smooth body, clean appearance.

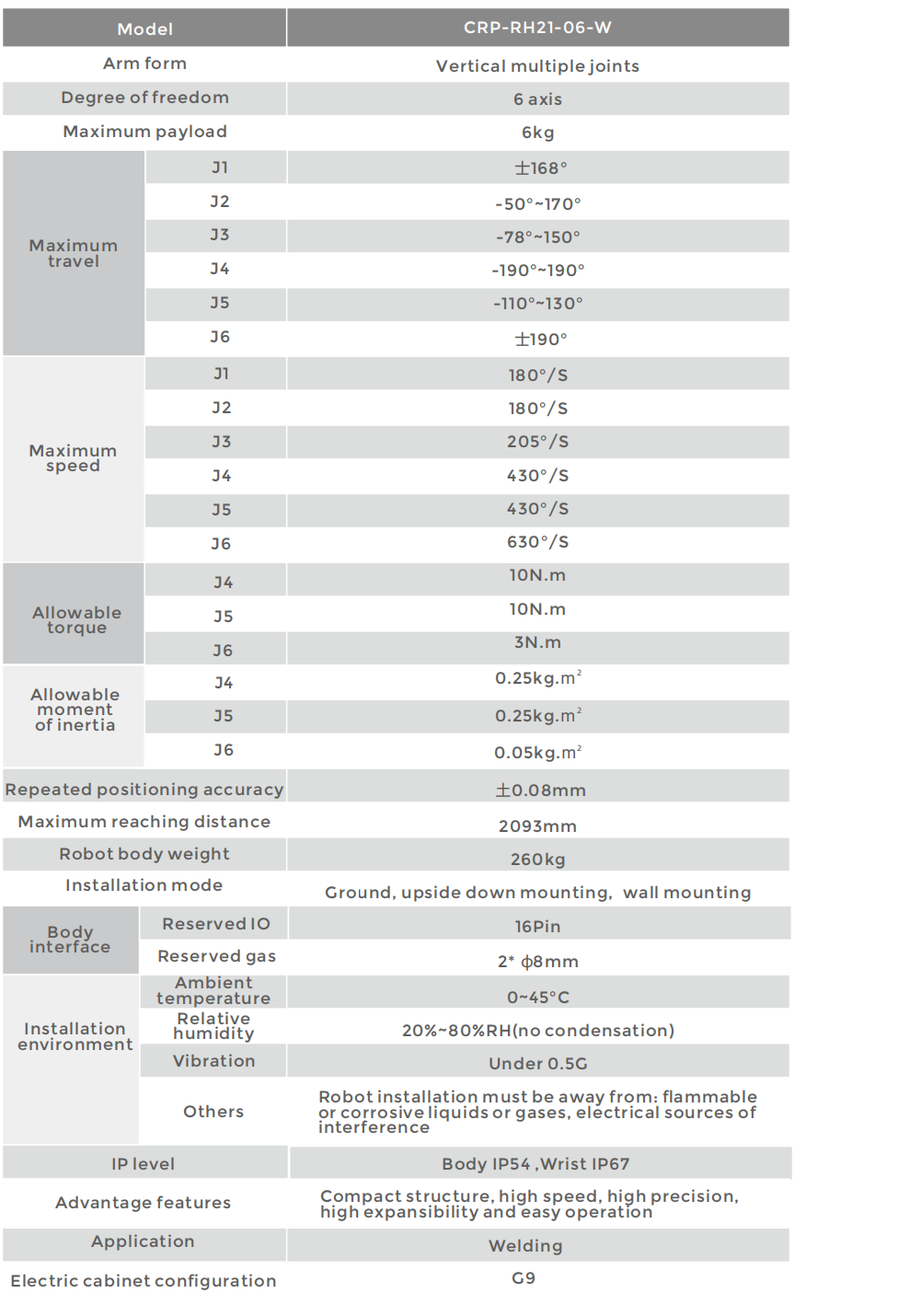

ROBOT BODY TECHNICAL PARAMETERS

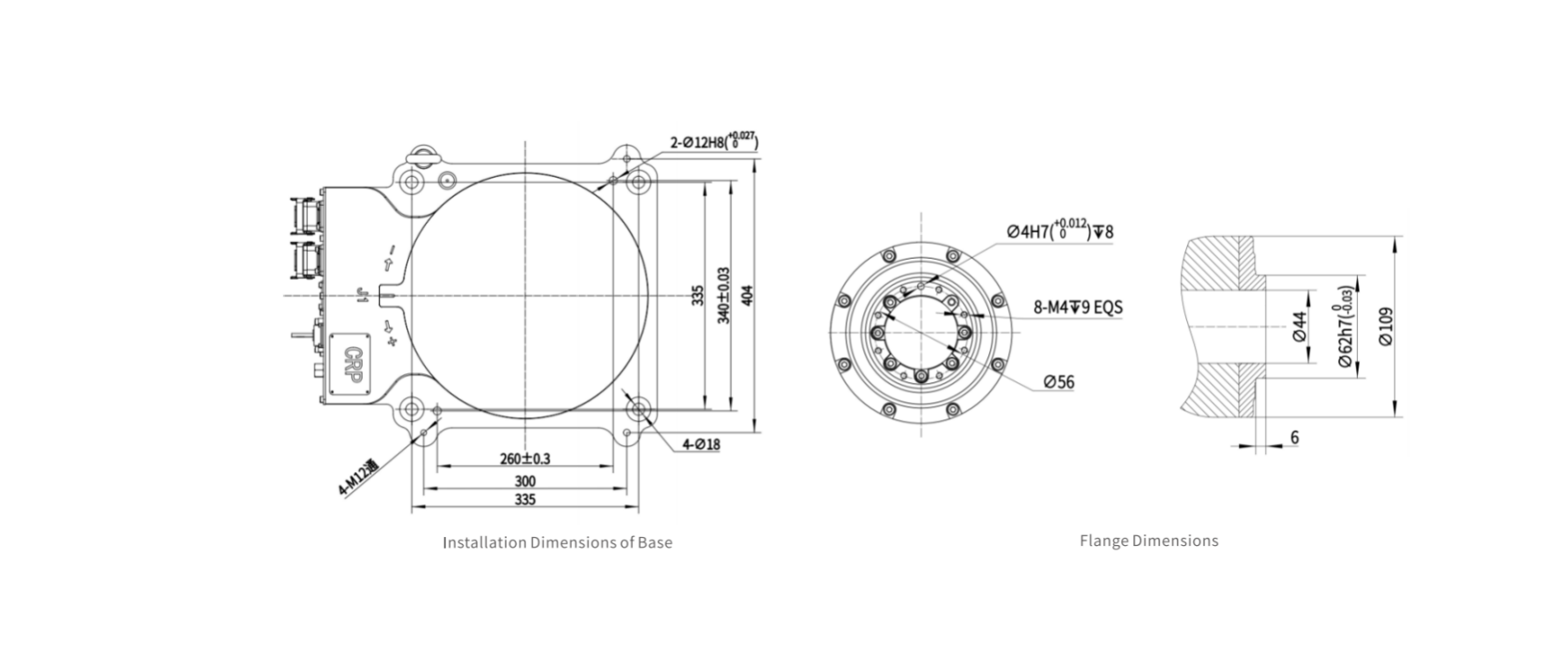

INSTALLATION INTERFACE DIAGRAM

MOTION RANGE DIAGRAM
