CRP-RA32-150
Describe
FUNCTIONAL FEATURES
  • The arm span is 3.2 meters, high rigidity,strong load capacity, more stable operation, and the load capacity is 150kg, which is about 15% higher than the previous generation.

  • Arm motor built-in, simple appearance, suitable for small space operation, more flexible movement.

  • With high speed, high overload capacity servo motor, high precision RV reducer and the latest anti-vibration control strategy,shorten the pitch operation time.

  • The installation area of the whole machine is small, which can achieve high density installation and wiring, and multiple collaborative work.

  • The robot has simple structure, friendly operation interface and easy maintenance.

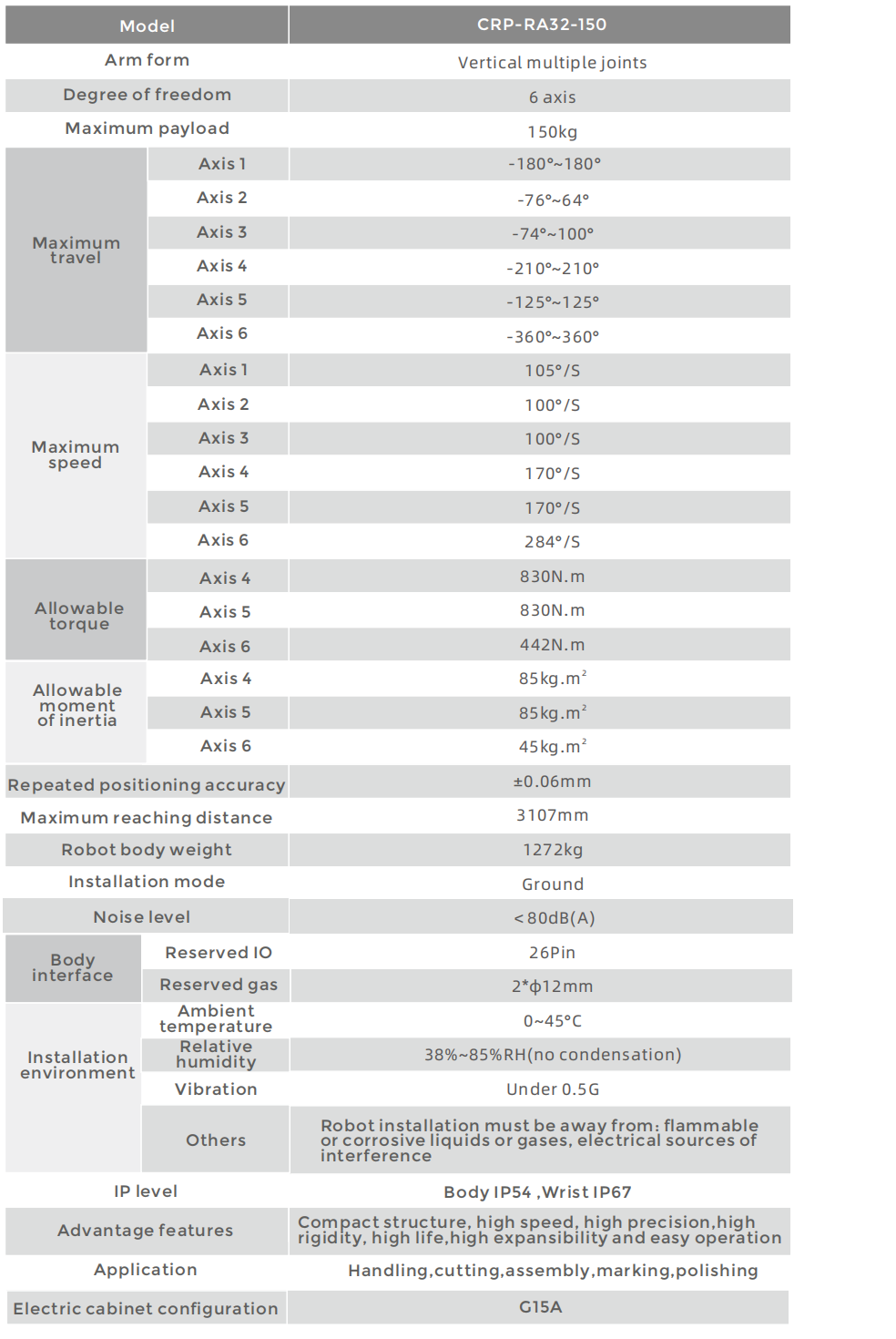

ROBOT BODY TECHNICAL PARAMETERS

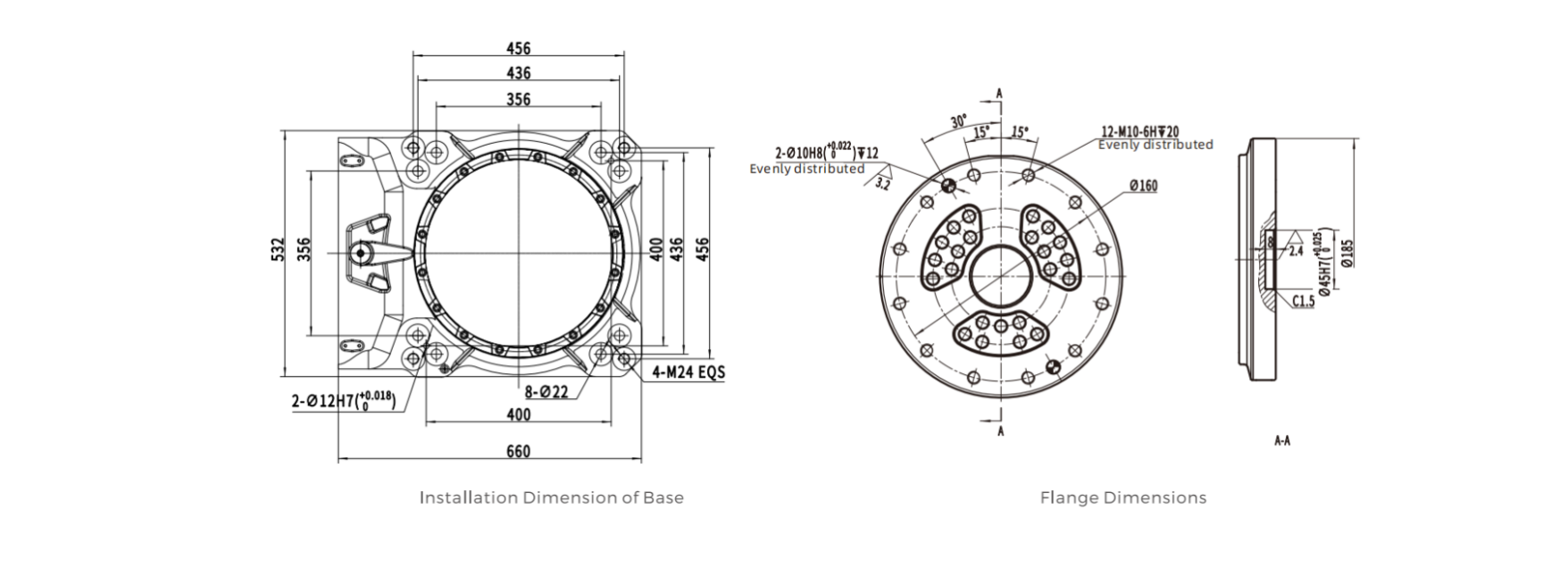

INSTALLATION INTERFACE DIAGRAM

MOTION RANGE DIAGRAM
